chopper pump

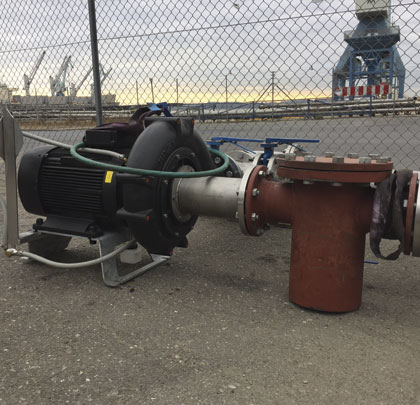

Purpose-built for hard-to-handle fluids, Landia’s Chopper Pump at Fredericia, Denmark.

At the Danish deep-water port of Fredericia, close to the international route of the Great Belt, a Landia chopper pump has enabled a shipping company to complete a crucial delivery of PFAD (palm fatty acid distillate).

STEPPING UP FOR DUTY

Following a major fire at the port, Nagro A/S urgently needed to transfer the distillate from a 600,000 gallons tank via a 985-foot, 6-inch diameter pump line to a ship that was on its way to the strategically vital strait between Denmark’s major islands of Zealand and Funen.

For a total head of 78 feet, maximum reliability and high (minimum 39,600 gallons per hour) flow was essential (not just at the pump). Short delivery time was also critical to avoid the huge expense of the ship unnecessarily docked on standby.

FINDING THE RIGHT CHOPPER PUMP

Landia’s Jacob E. Holdgaard, notes: “Nagro A/S has been using our mixers for almost sixteen years, without any problems whatsoever. The timing and performance of this urgent new installation was extremely important, but we were very confident with the capability of our 30kW MPTK Chopper Pump.”

In comparison to other pumps, the Landia MPTK pump is extremely compact which means reduced space requirements. The application areas within wastewater, biogas plants, food industry, among others are numerous. Generally, it can be said that a Landia chopper-pump type MPTK takes over where other pumps have had to give up due to clogging, high viscosity or wearing.

MPTK Chopper Pump

MPTK Chopper Pump

“It is purpose-built for for pumping heavily contaminated fluids, including those with a high solids content. The knife system at the pump’s inlet ensures hassle-free operations under conditions in which many other pumps have problems with clogging,” Holdgaard adds. “Naturally, we were very pleased to be able to protect our customer from what could have been an extremely costly delay”.

ADDING MIXERS TO THE PLAN

Since 2002, Nagro A/S have purchased a Landia POD-I mixer, plus twelve Landia POPTR-I side entry-mixers.

Designed for mixing fluids such as sludge, digested biomass, or fish silage, the Landia POPTR-I uses relatively low revolutions per minute. Mounted through the side of a tank wall (concrete or steel), which means that all service and maintenance can take place outside, the tank does not need to be emptied, nor the mixer lifted out of the tank. In addition, the Landia POPTR-I can also mix very hot fluids, because the electric motor benefits from optimal cooling conditions.

_______________________________________________________
MODERN PUMPING TODAY, April 2018
